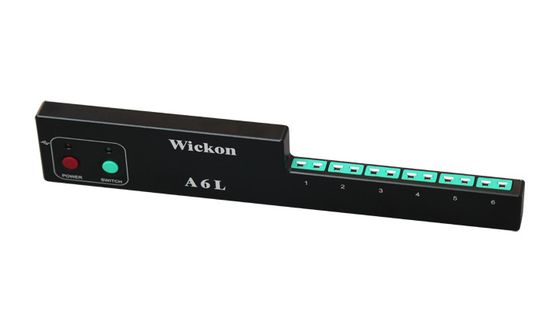

WICKON A6L Thermal profiler
compare | wickon | others |
Connector | USB (connection and charger) | com connector |
Data points | 4000000 points | 224,640 points(KIC) |
Channel | more(6.7.10.12.15.24) | less(7.9.12) |
Chip | can keep all the data when no power | can’t keep |
Resolution | +_0.01 accuracy | +_0.1 accuracy |
Volume | small easy to take | big hard to take |
Software | just one window can editor all item data | need one by one |
Temperature Range | -150℃~1370℃ | -150C to 1050C |
Start-up model | BY air,temperature and switch |
just buy temperature or switch |
Technology Parameters
Memory |
5,000,000points |
Test Channel |
6,7,10,12,15,24channel |
Sampling frequency |
0.05s~60Min |
Resolution |
0.1℃ |
Precision |
±0.5℃(Full scale) |
Max. inner runtemperature |
105℃ |
Temperature range |
-150℃~1370℃ |
Run Voltage |
3.7V~4.2VDC |
Thermocouple Types |
K wire(TT OR GG0.010inch/0.254mm) |
Start-up mode |
Switch button,starts the temperature |
Language version |
Chinese (Simplified and Traditional), English, etc. |
simulation fuction |
with |
PCC intelligent analysis module |
|
solder reflow profile WICKON A6L Picture Show
Our Products
WICKON Temperature curve for overall monitoring
Conduct industry for high temperature (sintering furnace, annealing furnace, IR oven, spraying, reflow and wave soldering) statistical analysis process, enabling more precise control of product quality, increase productivity, reduce scrap rate, to reduce product cost object .
Our SURVEYYOR adjustable enhancements can be controlled furnace temperature stability, thus the maximum extent possible to reduce the amount of board we tested in the company's cost savings, but also improve work efficiency.
Temperature chart recorder is also equipped with fast oven settings will help you more efficiently into the lead-free process. Whenever introducing a new product or solder paste needs to be optimized for the oven setting - which is often - a time-consuming process. Best Ovens set an arbitrary combination of fast oven set (ROS) by calculating from Wickon oven, the product and the target temperature curve to make this process automatic .ROS can be completed within seconds of experienced process engineers need several hours to complete the work.
● high efficiency, continuous data storage 24 times, downloaded to a computer packet analysis and processing;
● modular analysis mode, simple, fast analysis system based on PC (Windows)
And PDA (Pocket) for data analysis;
● Low power, battery, continuous use up to 168 hours
365 ultra-long standby, without deliberately charging;
● using the USB communication mode, for a variety of working environments and application areas
● rigorous manufacturing process and accurate calibration services, all calibration are used FLUKE-724 school
Positive, with China's largest CTI calibration institutional partners.
● ensure that each machine is accurate, reliable, small size, large storage capacity (5,000,000 data
Point), using FLASH memory chips, any accident will not lose data;
● High stability
● fairly long life, there is now a lot more than a decade of use WICKON life company
● multi-channel recorder obtained maximum temperature curve element.
● insulated box can cope with the harshest hot deputy shot process (using black box technology)
● Powerful Insight software is now with the process of measuring volatility,
● temperature profile and the ability to predict the SPC calculations,
Second, the principle:
(1) Data Logger
Wickon the Q series data loggers are reflow process used nowadays most accurate recorder. It has a precision of ± 0.5, 0.1 degree resolution and 5,000,000 readings more storage capacity, it can provide detailed information on the depth of the analysis process. USB X Series has a direct communication characteristics, so that the information can be transmitted as quickly as possible from the data logger to the PC.
(2) hot box
Wickon used in lead-free soldering under the protection of the common high temperature recorder. It uses the "black box" flight recorder on an aircraft instrument same insulation technology, it is enclosed in a rugged stainless steel housing.
(3) The basic principles of thermocouple
A conductor or semiconductor and B of two different materials welded together to form a closed loop. When the temperature difference between the two contacts conductors A and B, will generate thermoelectric power between the two, a phenomenon known as the thermoelectric effect. Thermocouple is to use this effect to work.
(4) Insight Software Features
Guide
All common functions are wizard-based, such as tolerance curve, process documents. Even with fairly complex analysis, the wizard guides you step by step through the process of testing the temperature profile, ensure the completion of all stages of testing and reduces training time.
alarm
Available new alarm feature to alert you when an error. A numerical analysis can give any domain set up alerts. If a limit value is exceeded, an alert appears on the screen so that you can quickly identify the problem.
Historical data SPC Calculation
Insight software enables users to quickly and easily using the temperature profile data for historical SPC calculations. Thus - to the stability and capacity of the welding process can be tested.
